Creating a DotNetNuke® Module using notepad -
For absolute beginners! (Page 2) page 1



Creating the Development environment:















  At this point you want to have DNN installed and working. You should only use a development server. If you attempt to develop a module on a production server you will undoubtedly mess up your production instillation of DNN and that is very upsetting!

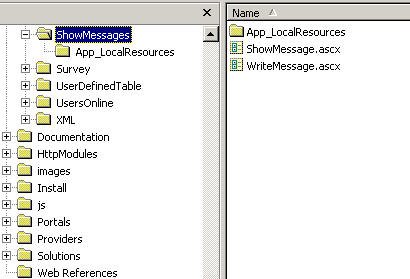

1. Once you have DNN up and running, use the file manager (Windows Explorer) to locate the "DesktopModules" folder in the DNN directory (usually located at "C:\Inetpub\ wwwroot\ DotNetNuke\ DesktopModules").

2. Create a folder in that directory and name it "ShowMessages"

3. Open notepad and paste the following code in it and save it as "ShowMessage.ascx" in the "ShowMessages" directory you just created.

<%@ Control Inherits="ImportantMessage.ShowMessage" Src="ImportantMessages.vb" Language="vb" autoeventwireup="false" Explicit="True" %>
<asp:Label id="lblHelloWorld" runat="server"></asp:Label>

4. Open notepad and paste the following code in it and save it as "WriteMessage.ascx" in the "ShowMessages" directory.

<%@ Control Inherits="ImportantMessage.WriteMessage" Src="ImportantMessages.vb" Language="vb" %>
<%@ Register TagPrefix="dnn" TagName="Label" Src="~/controls/LabelControl.ascx" %>
<table cellspacing="0" cellpadding="2" border="0" summary="importantmessagesdev edit design table">
<tr>
<td class="SubHead" width="200">
<dnn:label id="plEditText" controlname="txtEditText" suffix="" runat="server"></dnn:label>
</td>
<td>
<asp:TextBox id="txtEditText" CssClass="NormalTextBox" runat="server"></asp:TextBox>
</td>
</tr>
</table>
<asp:linkbutton id="cmdUpdate" resourcekey="cmdUpdate" CssClass="CommandButton" borderstyle="none" runat="server"></asp:linkbutton>
<asp:linkbutton id="cmdCancel" resourcekey="cmdCancel" CssClass="CommandButton" causesvalidation="False" borderstyle="none" runat="server"></asp:linkbutton>

5. Open notepad and paste the following code in it and save it as "ShowMessage.ascx.resx" in the "ShowMessages\App_LocalResources" directory.

6. Open notepad and paste the following code in it and save it as "WriteMessage.ascx.resx" in the "ShowMessages\App_LocalResources" directory.

7. Open notepad and paste the following code in it and save it as "ImportantMessages.vb" in the "ShowMessages" directory.

You can download a copy of the files here.









  Now that you have put the files into DNN you have to tell DNN that the files are installed. First log in using the host DNN administrator account (without this you will not be able to see the "HOST" tab).

Select HOST then MODULE DEFINITIONS





  On the next screen select ADD NEW MODULE DEFINITION

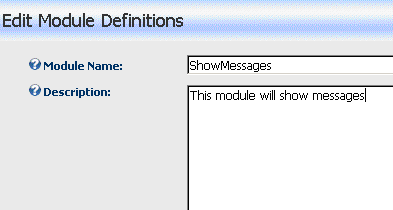

  On the next screen enter "ShowMessages" for the module name and "This module will show messages" for description. Click the UPDATE button at the bottom of the page.

Note: In DotNetNuke 3.1 you now have to put a "folder name" (Put in "ShowMessages" because that is the folder it is in).





  The DEFINITIONS box will appear at the bottom of the screen. Type in "ShowMessages" and click ADD DEFINITION.

Note: In DotNetNuke 3.1 you now have to put a "" (Put in "0" (zero)). Then click the "Update Cache Properties" button.

(If you get 'Input string was not in a correct format.' see this post)





  The control section will appear. Click ADD CONTROL.

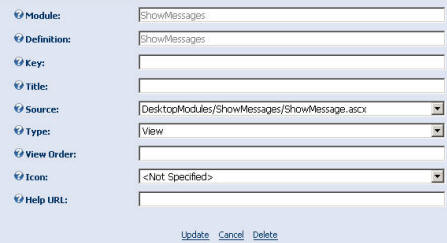

  The EDIT MODULE CONTROL box will appear. Use the drop-down box to select "DesktopModules/ShowMessages/ShowMessage.ascx" for SOURCE and select "view" for TYPE.

Then click UPDATE

    Click ADD CONTROL again. The EDIT MODULE CONTROL box will appear. Use the drop-down box to select "DesktopModules/ShowMessages/WriteMessage.ascx" for SOURCE and select "Edit" for TYPE. Enter "EDIT" for KEY. Click UPDATE.
  In the "page functions" Administration in the upper left hand corner, click ADD

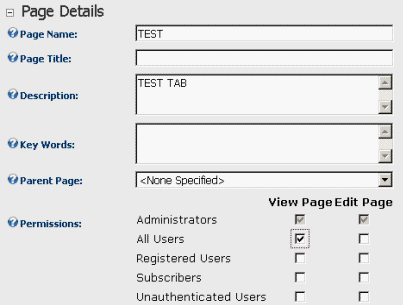

  On the Page Management screen, enter "TEST" for Page Name and "TEST TAB" for Description. Select "<None Specified>" for Parent Page. Select All Users under VIEW PAGE (If the "All Users" box is "grayed out", uncheck the "Inherit View permissions from Page" box). Click UPDATE at the bottom of the page.

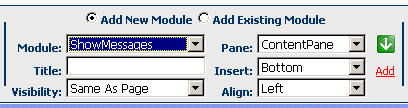

  Now from the MODULE drop down select "ShowMessages"

Click the ADD button

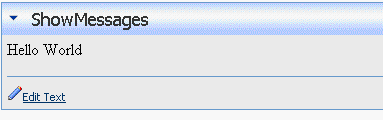

  The show messages module will now appear on the page.

    Hover the mouse pointer over the down-arrow icon in the  upper left-hand corner of the module. When the fly-out menu appears select "Edit Text".
    The edit control will appear. Type in "test" and click SAVE.
    The message will appear.



The development environment is complete.



Next... changing the module

2 of 5
